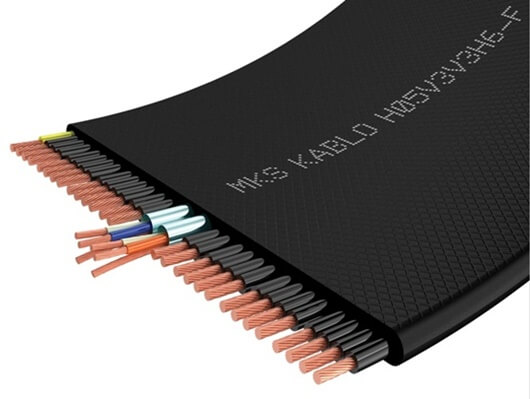

H05V3V3H6-F 28G0,75+2x(2×0,25) Flat Cable

H05V3V3H6-F type of 28 G 0.75 + 2x (2×0.25) mm² flat cable is a specialized solution designed to meet the complex needs of modern elevators. This lift cable configuration offers a combination of power, control, and communication capabilities.

Main Pairs: The flat cable features 27 numbered cores and 1 green-yellow core of 0.75 mm² cross-sectional area. These cable cores are typically used for power distribution and control signals within the elevator system.

Shielded Pairs: The cable includes two pairs of 0.25 mm² shielded cables (Total 4 cores of 0.25 mm² shielded cables). These shielded pairs use for communication signals without interference in elevators.

The shielded design of this elevator cable provides an effective solution for elevator interference issues. By isolating sensitive signals from electromagnetic interference, the cable ensures clear and uninterrupted communication between various elevator components.
